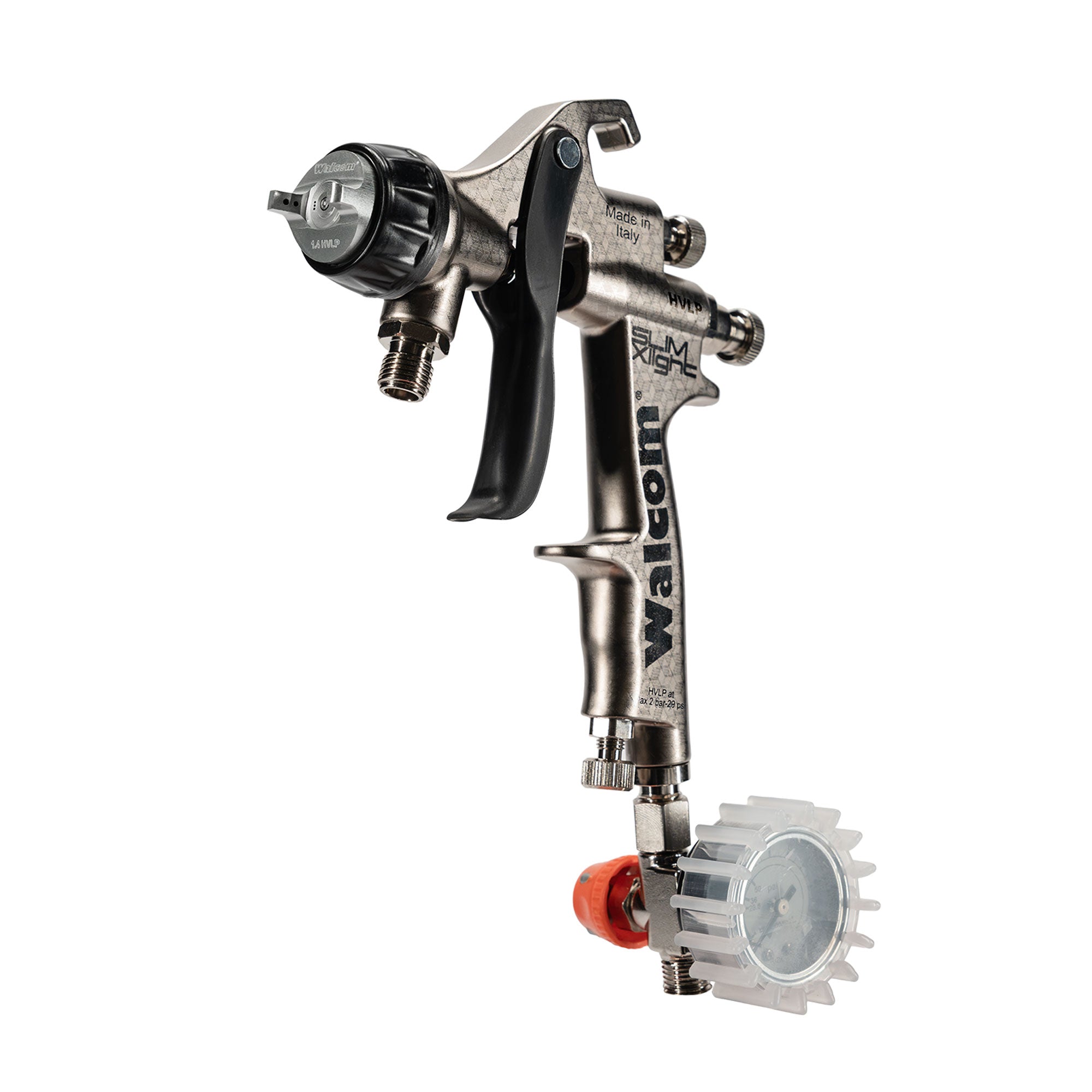

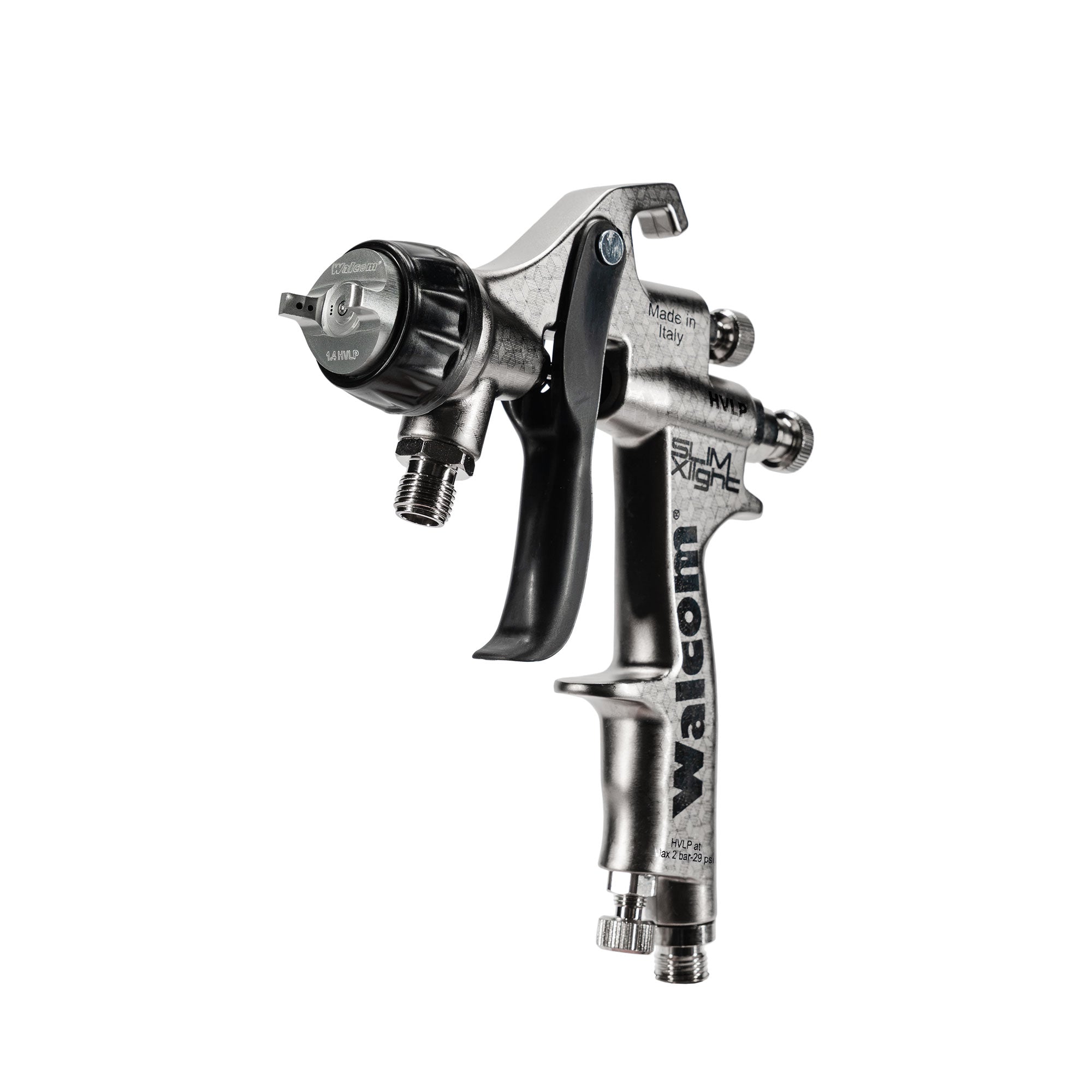

Xlight HVLP SP delgado
x La pistola pulverizadora está construida con una válvula de aire y una aguja en un solo eje para proporcionar un mayor rendimiento y una mayor simplicidad de mantenimiento.
Technical data
x| Body | chemically nickeled aluminum - matte finishing |
| Trigger | PA & fiber glass |
| Air cap | anodized aluminum |
| Air cap ring | PA & fiber glass |
| Nozzle | AISI 303 stainless steel |
| Needle-springs | stainless steel |
| Seal gaskets | self-lubricating PTFE (teflon) |
| Weight | 455 g |
| Operating air pressure | range 0.5 - 2.5 bar (7.2 - 36 psi) / recommended at 2 bar (29 ps) |
| Air consumption | 260 l/min at 2 bar / 9 cfm at 29 psi |
| Ø nozzle Gravity feed | 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 - 2.5 |
| Ø nozzle Pressure feed | 1.0 - 1.1 - 1.2 - 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 /Ø nozzle HD feed: feed: 1.3 - 1.5 - 1.7 - 1.9 - 2.2 |
| Ø nozzle Suction feed | 1.3 - 1.4 - 1.5 - 1.7 - 1.8 - 1.9 - 2.2 |
Maintenance
xESPLOSO SLIM XLIGHT SP HVLP
Suitable fields of application
Certifications
